Engineered for a Divine Typing Experience
Beneath its striking exterior, the Athena 1800 is built with the discerning enthusiast in mind, offering a choice of premium typing experiences.

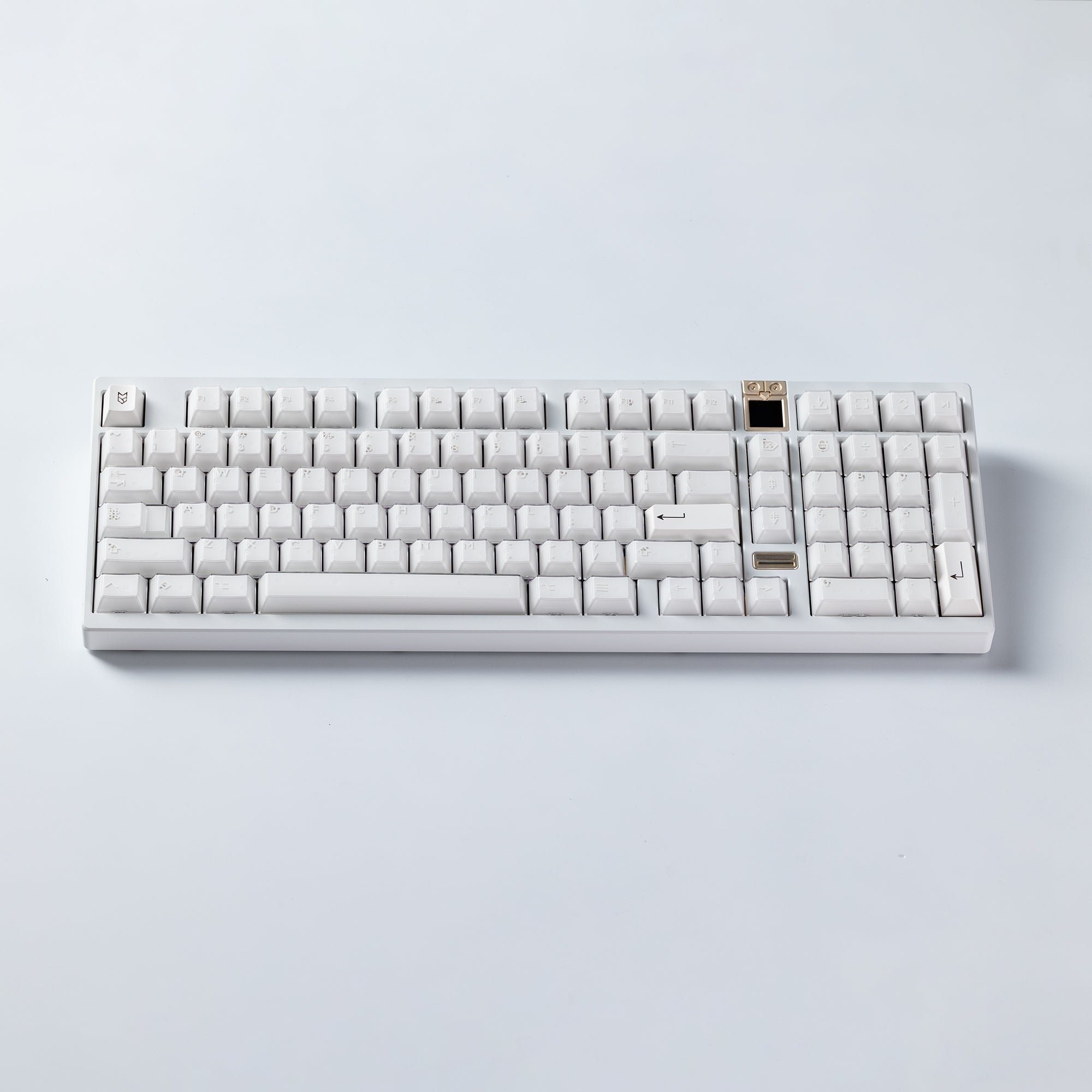

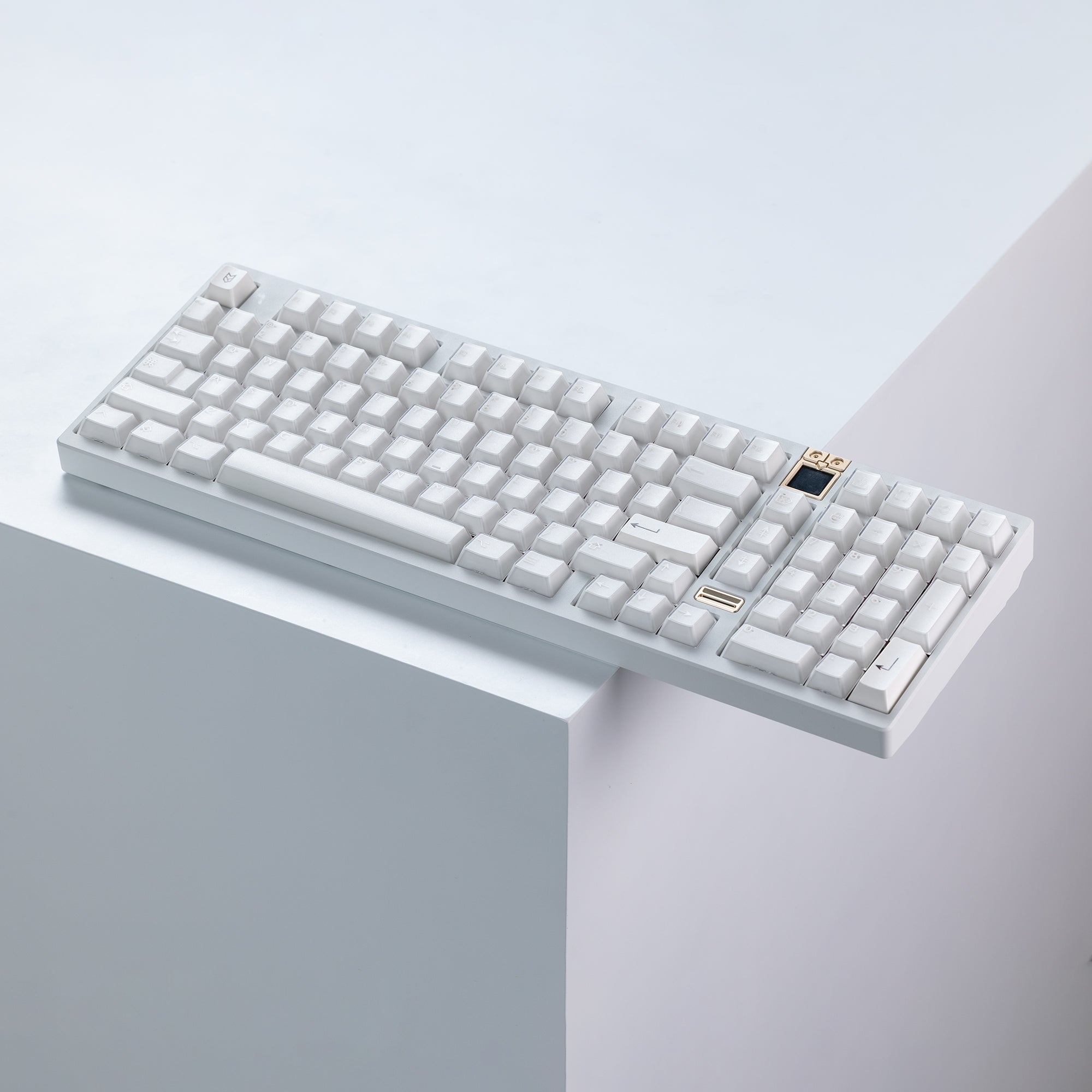

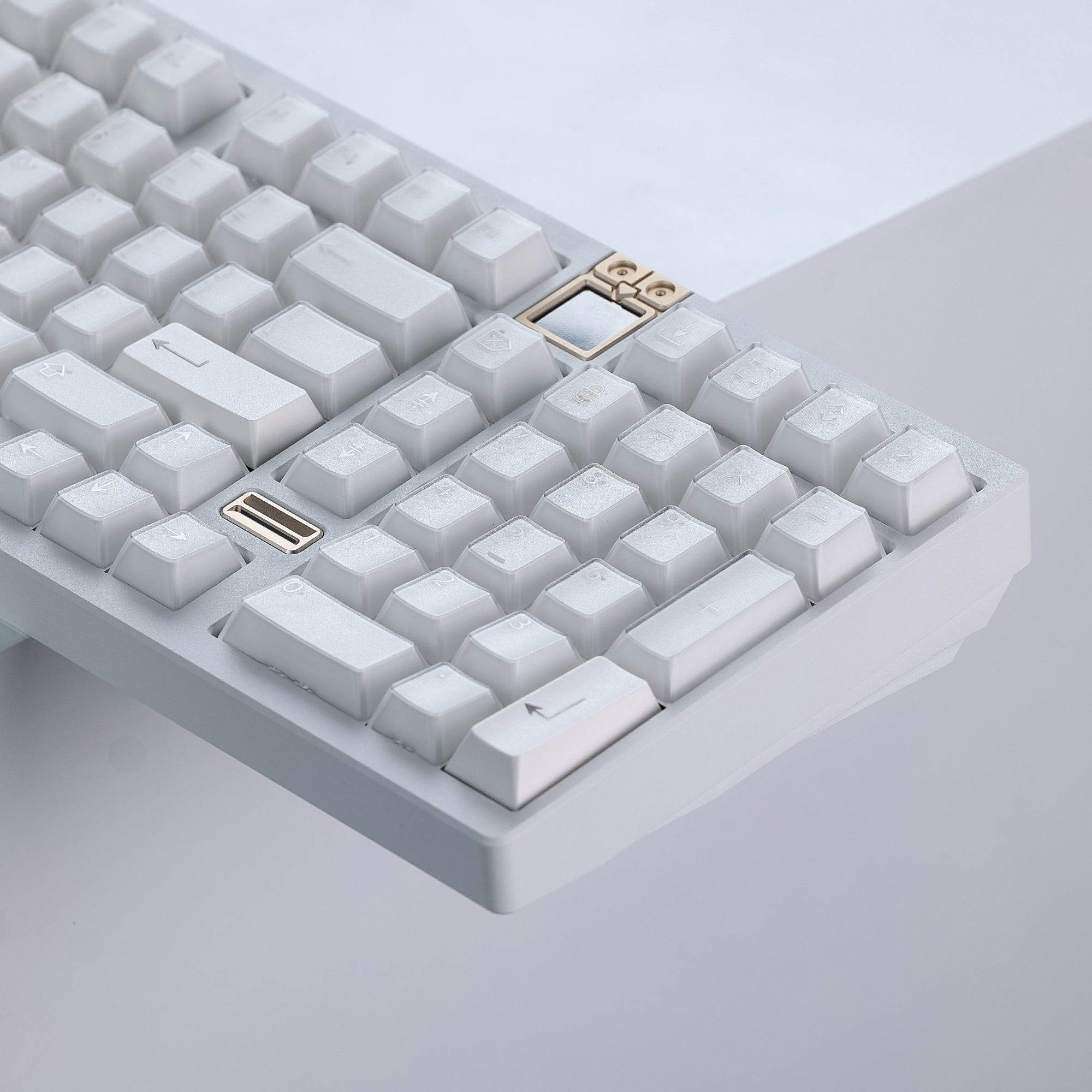

Ready to use Athena 1800 with PBTfans X-Ray
$221.00
SKU:
ZH20886
Top Mount
For a classic, firm, and direct typing feel with consistent feedback. Favored by those who appreciate a traditional, responsive typing experience and sound.
PCB Silicone Gasket
Delivering a softer, more cushioned, and acoustically refined typing sensation. This mount isolates the PCB, providing a gentler bottom-out and a more muted, thocky sound profile.

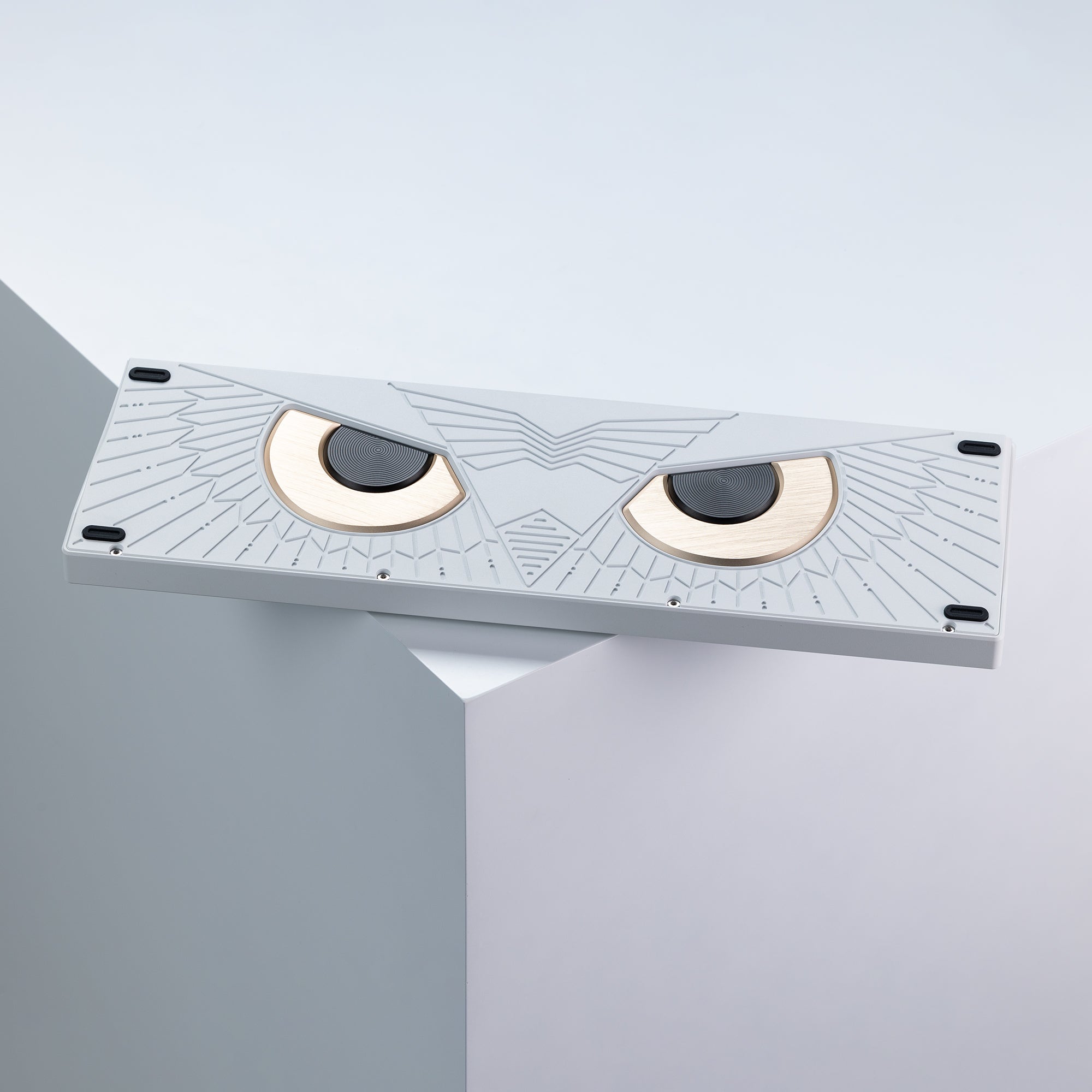

Internal Cover plate and rectangular Weight bar
Cover plate material options: Stainless Steel / Brass / Carbon Fiber
Internal Design: Each version comes standard with a stainless steel internal weight bar.
This design not only provides a substantial, premium typing feel but also offers a diverse range of unique acoustic profiles.
The stainless steel version, in particular, features exquisite "toolpath" engravings—a finely machined texture on its interior.
This hidden detail is a testament to a meticulous commitment to quality and a unified aesthetic throughout the entire build.
Exploded View
Layout
Specs：
- Case material: Aluminum (anodized/e-coating)
- Mounting style: Top Mount/PCB Silicone Gasket

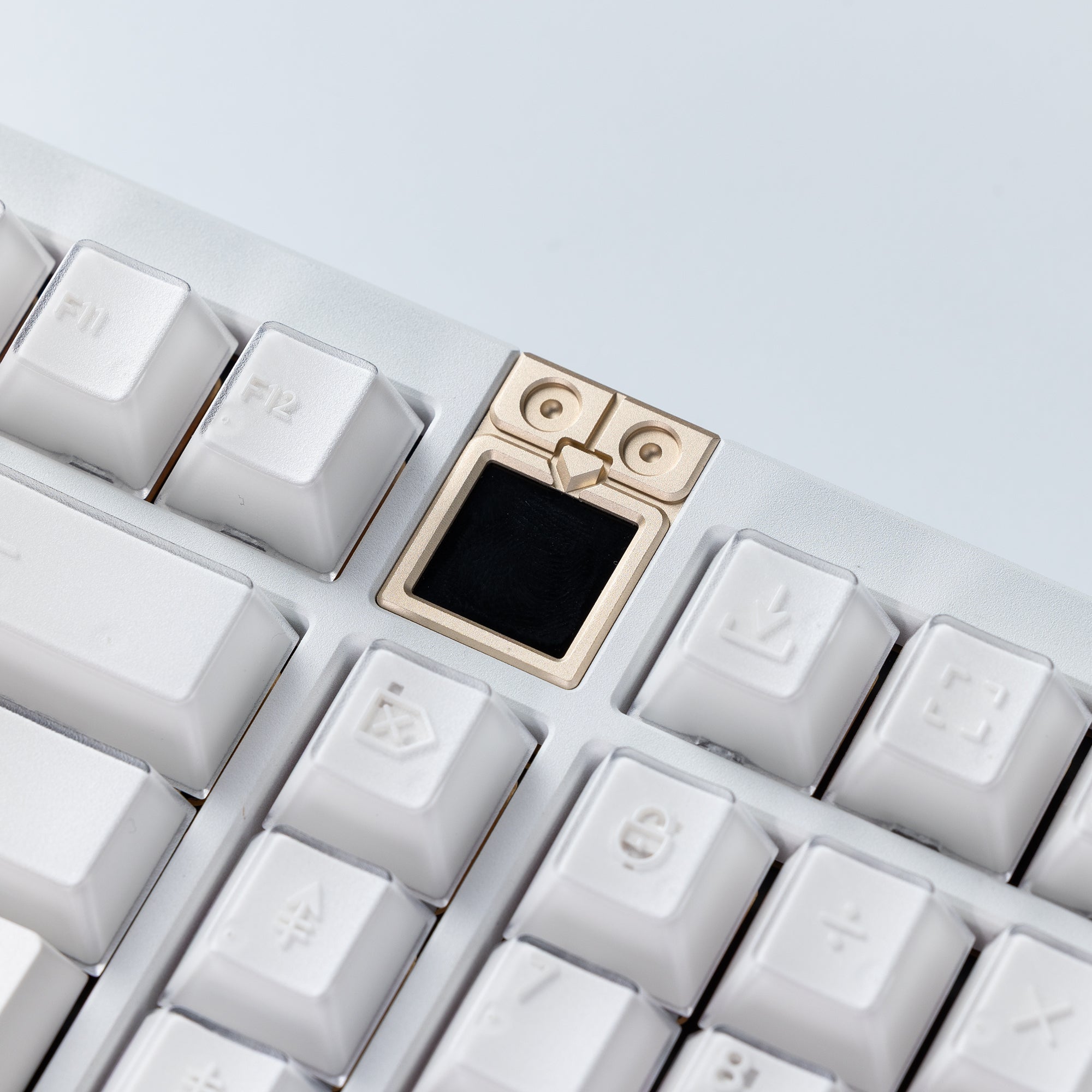

- PCB: 1.6mm solder/ hotswap PCB, non flex-cut, USB-C interface, VIAL supported, includes Caps Lock key/Scroll Lock key RGB LCD indicator
- Plate: Alu/FR4/PC/ Carbon fiber Plate
- Typing angle: 9 degree
- Cover plate material options: Stainless Steel / Brass / Carbon Fiber
-
Weight after built：
≈2.5kg with Carbon Fiber cover plate
≈3kg with Stainless Steel cover plate - Designer: Wei
- Plate file
Firmware：
- ydkb_kbdfans_athena1800_via_v3.json
- kbdfans_athena1800_vial.uf2
- Flash manual
-
Athena 1800 GIF Customization Guide
- * Friendly reminder: For custom GIFs, you can contact our customer service to help you convert your image or animation into the .uf2 format
What's included:
- Top and bottom case x1
- Stainless steel weight bar x1
- Silicone gasket x1 set
- Rubber feet x1 set
- Solder / hotswap PCB x1
- Daughterboard x1
- Cover plate x1
- Foam kit x1
- Plate x1
- LCD screen x1
- Bezel x1
- RGB grille x1
- Aluminum pupil x1 set
- Aluminum iris x1 set
- Screws x1 set
- Force break tape x1 set

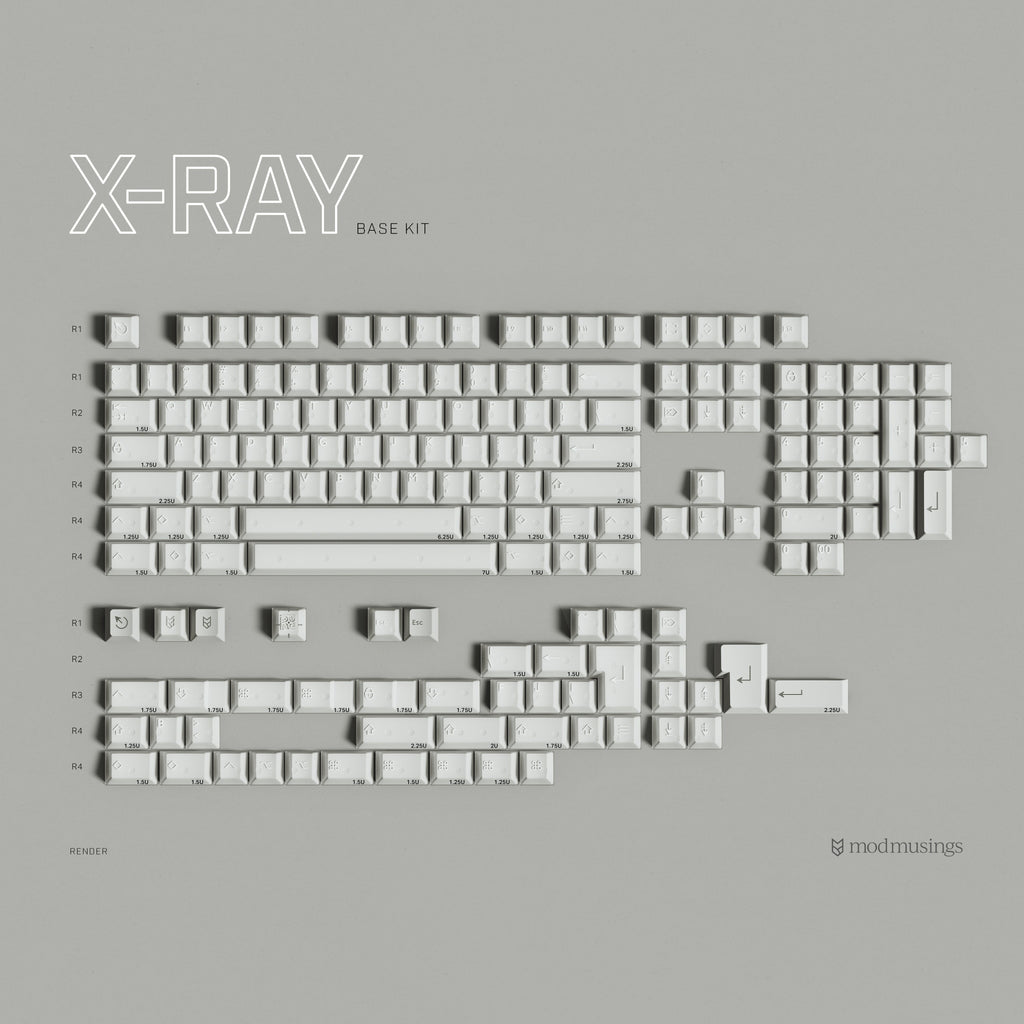

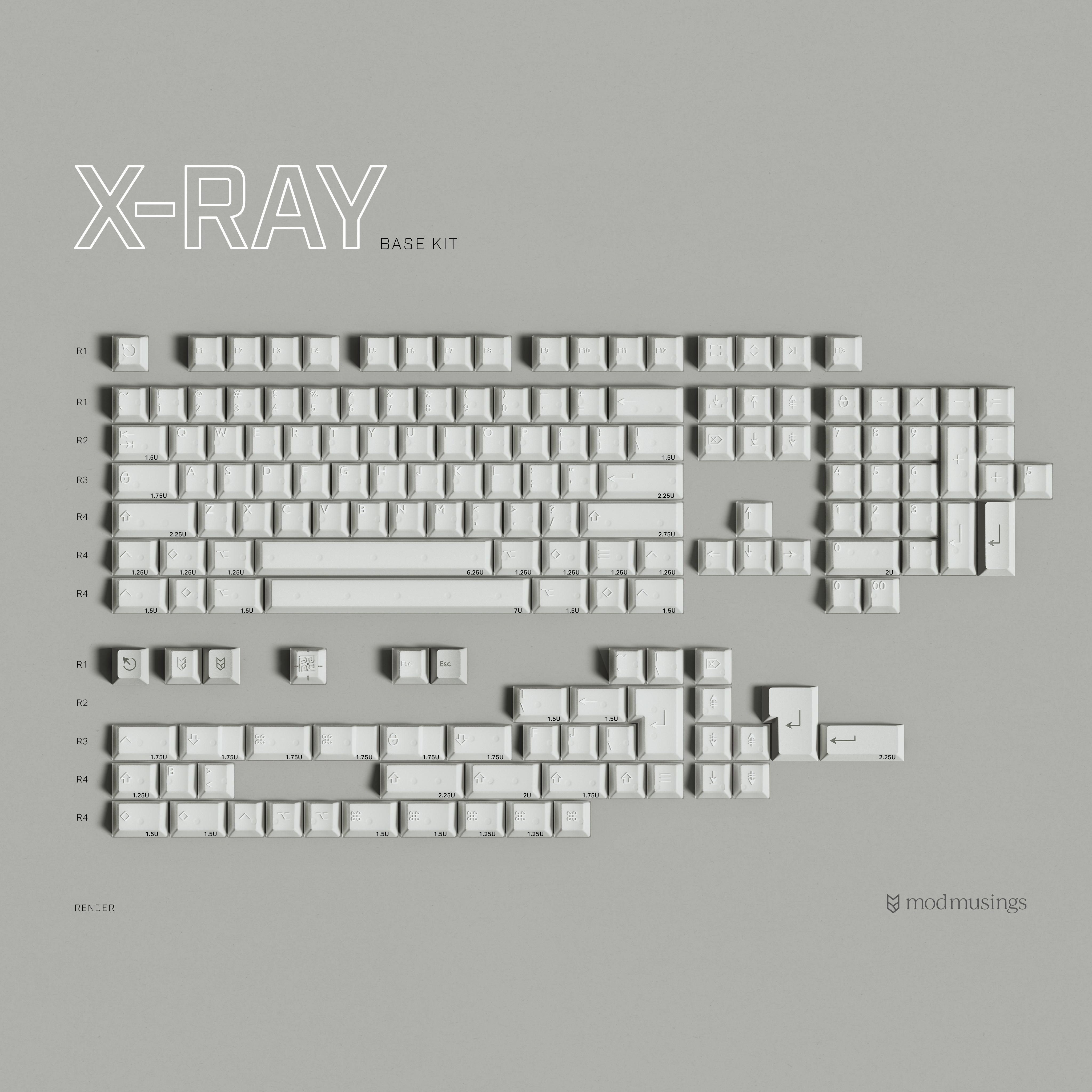

- PBTfans X-Ray Base kit（PT45-1）
Update：
- Pre-order will ship around October, 2025 (07/30/2025)
Dimensions
