Margo

Introducing our new beach-inspired keyboard design!
With elegant curves resembling ocean waves and CNC-cut case, the Margo continues our minimalist approach.

Inspired by the graceful curves of ocean waves and adorned with shell patterns, this keyboard takes design to the next level.

The captivating keycaps will catch your eye from the front, while the keyboard itself remains sleek and unadorned.
Each case is paired with its own brass weight, making the overall combination more harmonious.

We have matched the weight bars with corresponding colors based on the different case colors.

The heat coloring of brass is achieved by heating the surface of the brass, causing it to undergo a chemical reaction with the oxygen in the air, forming a thin layer of oxide film.

The thickness and composition of this film will vary depending on the temperature and duration of the heating process, resulting in a range of different colors.

This means that each piece of brass hardware is unique.

Zircon sand blasting can be used to clean the surface, increase the surface area, improve the appearance, increase the hardness, and enhance the coating adhesion of the aluminum alloy housing.
Compared to traditional glass beads, zircon sand has higher hardness and wear resistance.
It can produce a more uniform and smoother surface, while also improving the adhesion and corrosion resistance of the coating.

We have matched the weight bars with corresponding colors based on the different case colors.

The heat coloring of brass is achieved by heating the surface of the brass, causing it to undergo a chemical reaction with the oxygen in the air, forming a thin layer of oxide film.

The thickness and composition of this film will vary depending on the temperature and duration of the heating process, resulting in a range of different colors.

This means that each piece of brass hardware is unique.

Zircon sand blasting can be used to clean the surface, increase the surface area, improve the appearance, increase the hardness, and enhance the coating adhesion of the aluminum alloy housing.

Compared to traditional glass beads, zircon sand has higher hardness and wear resistance.

It can produce a more uniform and smoother surface, while also improving the adhesion and corrosion resistance of the coating.

Video

Quick installation video guide

1. Top case

2. Force break tape

3. Plate

4. Mute silicone

5. PCB

6. Case foam

7. Bottom case

8. Weight bar

9. Rubber feet

1. Top case

2. Force break tape

3. Plate

4. Mute silicone

5. PCB

6. Case foam

7. Bottom case

8. Weight bar

9. Rubber feet

PCB

KBD67 MKII Hot-swap wired PCB
USB-C interface
With Per-key RGB
Supports QMK/VIA firmware

Plate

FR4/Aluminum/Polycarbonate (Injection molding)

Diversify your typing experience with a choice of three positioning plates. Each plate provides a unique tactile feel, allowing users to tailor their typing experience to personal preferences.

PCB

KBD67 MKII Hot-swap wired PCB
USB-C interface
With Per-key RGB
Supports QMK/VIA firmware

Plate

FR4/Aluminum/Polycarbonate (Injection molding)

Diversify your typing experience with a choice of Three positioning plates. Each plate provides a unique tactile feel, allowing users to tailor their typing experience to personal preferences.

Specification

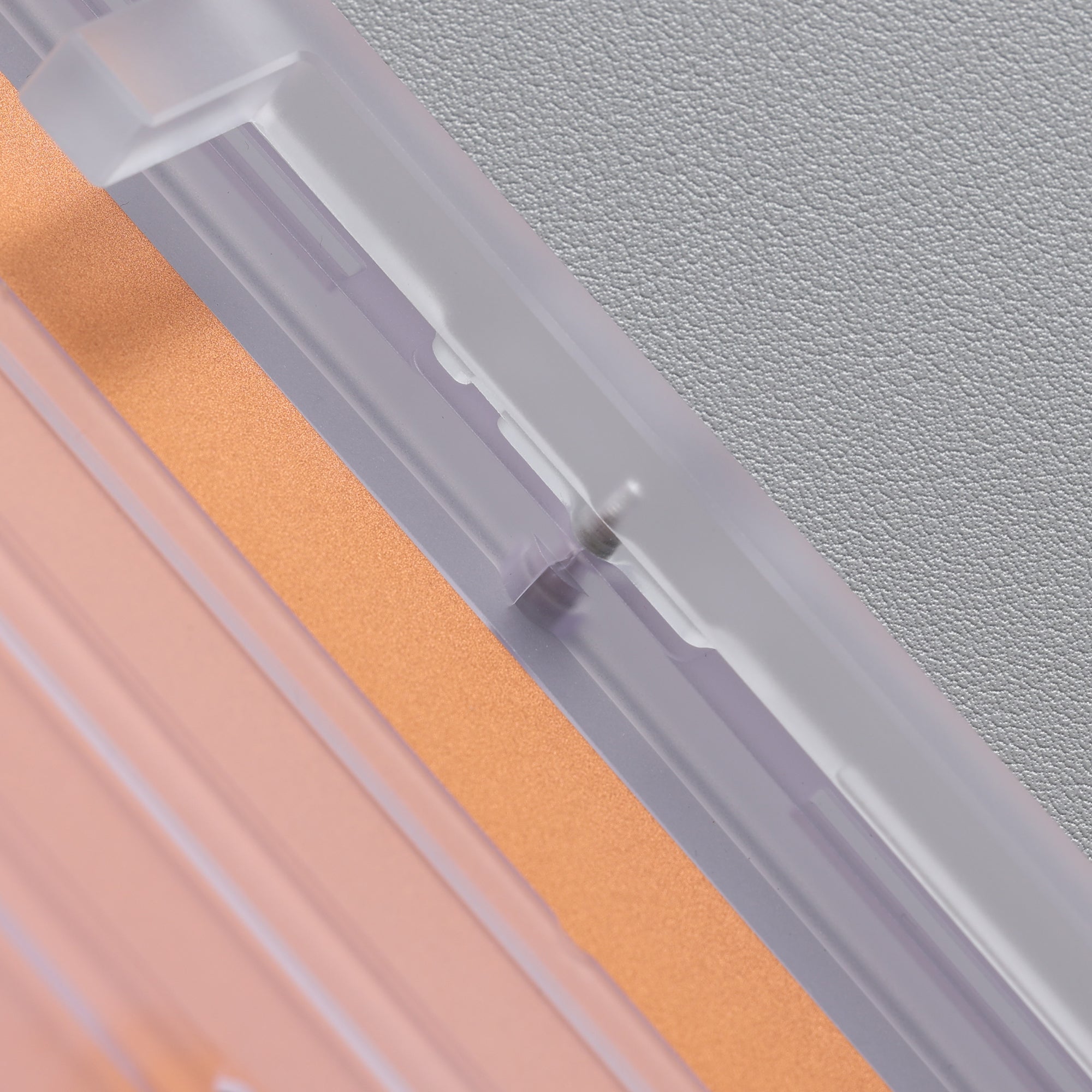

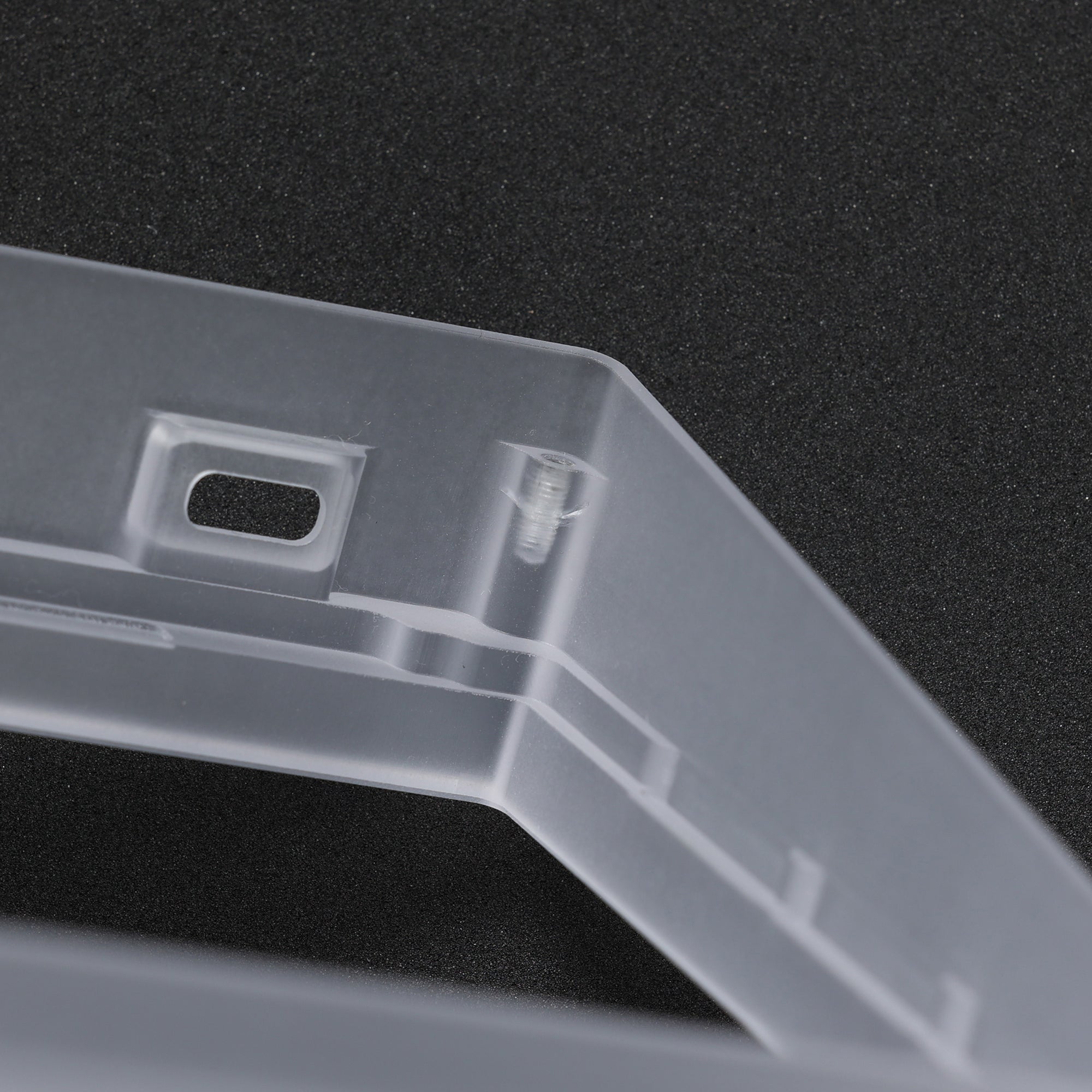

Case: Aluminum case/PC case

Structure: Silicone gasket mount

Weight bar: Patina finished brass weight bar with clear coating protection for Aluminum case/ Copper brass weijght bar for PC case

PCB Mode: 1.6mm non-flex cut hotswap PCB, wired version only, support QMK/VIA

Per-key RGB: Yes

Mute silicone: Yes

Plate: Three options (FR4/Aluminum/Polycarbonate plate);Non-flex cut

USB interface: USB-C

Typing angle: 6 degree

Weight: around 1.6kg after assembly

The case is compatible with KBD67 Lite.

Designer: Wei

Update

In-stock sale: 2024-7-12

Official production started (2024-05-31)

The R2 prototype has completed production and testing, and has been confirmed. (2023-12-21)

Include

PCB x1

Case x1

Plate x1

Weight bar x1

Mute silicone x1

Bottom foam x1

Screwdriver with T6 bit x1

Rubber feet X1 set

Screws x1 set

Firmware

Flash Manual

kbd67_markii rgb v3_via.bin

kbd67markiirgb_v3.json

Vender List

KR: Geonworks

USA: Divinikey
TH: Aiglatson studio
Singapore: Ktechs
EU: Keygem
Global: KBDfans

QC standard

Margo QC standard: Link

Layout

Dimension

Pictures

Margo

Introducing our new beach-inspired keyboard design!
With elegant curves resembling ocean waves and CNC-cut case, the Margo continues our minimalist approach.

Inspired by the graceful curves of ocean waves and adorned with shell patterns, this keyboard takes design to the next level.

We have matched the weight bars with corresponding colors based on the different case colors.

The heat coloring of brass is achieved by heating the surface of the brass, causing it to undergo a chemical reaction with the oxygen in the air, forming a thin layer of oxide film.

The thickness and composition of this film will vary depending on the temperature and duration of the heating process, resulting in a range of different colors.

This means that each piece of brass hardware is unique.

We have matched the weight bars with corresponding colors based on the different case colors.

The heat coloring of brass is achieved by heating the surface of the brass, causing it to undergo a chemical reaction with the oxygen in the air, forming a thin layer of oxide film.

The thickness and composition of this film will vary depending on the temperature and duration of the heating process, resulting in a range of different colors.

This means that each piece of brass hardware is unique.

Zircon sand blasting can be used to clean the surface, increase the surface area, improve the appearance, increase the hardness, and enhance the coating adhesion of the aluminum alloy housing.

Compared to traditional glass beads, zircon sand has higher hardness and wear resistance.

It can produce a more uniform and smoother surface, while also improving the adhesion and corrosion resistance of the coating.

Video

Quick installation video guide

Video

1. Top case

2. Force break tape

3. Plate

4. Mute silicone

5. PCB

6. Case foam

7. Bottom case

8. Weight bar

9. Rubber feet

Quick installation video guide

Video

1. Top case

2. Force break tape

3. Plate

4. Mute silicone

5. PCB

6. Case foam

7. Bottom case

8. Weight bar

9. Rubber feet

Quick installation video guide

PCB

KBD67 MKII Hot-swap wired PCB
USB-C interface
With Per-key RGB
Supports QMK/VIA firmware

Plate

PCB

KBD67 MKII Hot-swap wired PCB
USB-C interface
With Per-key RGB
Supports QMK/VIA firmware

Plate

Specification

Case: Aluminum case/PC case

Structure: Silicone gasket mount

Weight bar: Patina finished brass weight bar with clear coating protection for Aluminum case/ Copper brass weijght bar for PC case

PCB Mode: 1.6mm non-flex cut hotswap PCB, wired version only, support QMK/VIA

Per-key RGB: Yes

Mute silicone: Yes

Plate: Three options (FR4/Aluminum/Polycarbonate plate);Non-flex cut

USB interface: USB-C

Typing angle: 6 degree

Weight: around 1.6kg after assembly

The case is compatible with KBD67 Lite.

Designer: Wei

Update

PC case will be shipped at the end of September (2024-09-03)

PC version is pre-order, the estimated shipping date is in 2-3 months (2024-7-12)

In-stock sale: 2024-7-12

Official production started (2024-05-31)

The R2 prototype has completed production and testing, and has been confirmed. (2023-12-21)

Vender List

KR: Geonworks

USA: Divinikey
TH: Aiglatson studio
Singapore: Ktechs
EU：Keygem
Global: KBDfans

Include

PCB x1

Case x1

Plate x1

Weight bar x1

Mute silicone x1

Bottom foam x1

Screwdriver with T6 bit x1

Rubber feet X1 set

Screws x1 set

Firmware

Flash Manual

kbd67_markii rgb v3_via.bin

kbd67markiirgb_v3.json

QC standard

Margo QC standard: Link

Friendly Reminder

Margo case foam can not be used together with the plateless gasket

Upgraded gasket parts: It support both hot-swap and solder PCB, and also support using plate

Layout

Dimension

Pictures
