Include
- Top and Bottom case x1
- Polycarbonate plate x1
- PCB x1
- PCB foam x1
- Switch pads x1
- Silicone socks set x1
- Designed tape mod x1
- Cherry stabs kit x1
- Stabilizer shims x1
- Carrying case x1
- USB-C cable x1
- Rubber feet x1
Tiger 80 on media
Official Build Guide
Acrylic Version Sound Test
SPECS
- Layout: 80%
- PCB: Hotswapable, Flex Cut, 1.2 mm thickness, RGB underglow, QMK firmware, USB-C interface
- Case: Top and Bottom Acrylic Case
- Plate: Injection plate, Polycarbonate
- Structure: Leaf spring mount
- Typing angle: 7°
- Weight: around 1.2 kg
- Compatibility: MX-type switches
- keyboard Size: 358 mm x 134 mm
- Tape Mode Size: 347 mm x 116 mm
- Designer: Wei
Firmware
Optional accessories
- Hot-swap assemble service: Link (Please add 90 switches in the cart together)
Include
- Top and Bottom case x1
- Polycarbonate plate x1
- PCB x1
- PCB foam x1
- Switch pads x1
- Silicone socks set x1
- Designed tape mod x1
- Cherry stabs kit x1
- Stabilizer shims x1
- Carrying case x1
- USB-C cable x1
- Rubber feet x1
NOTE
- USB Daughter Board Connector Specification: SH1.0

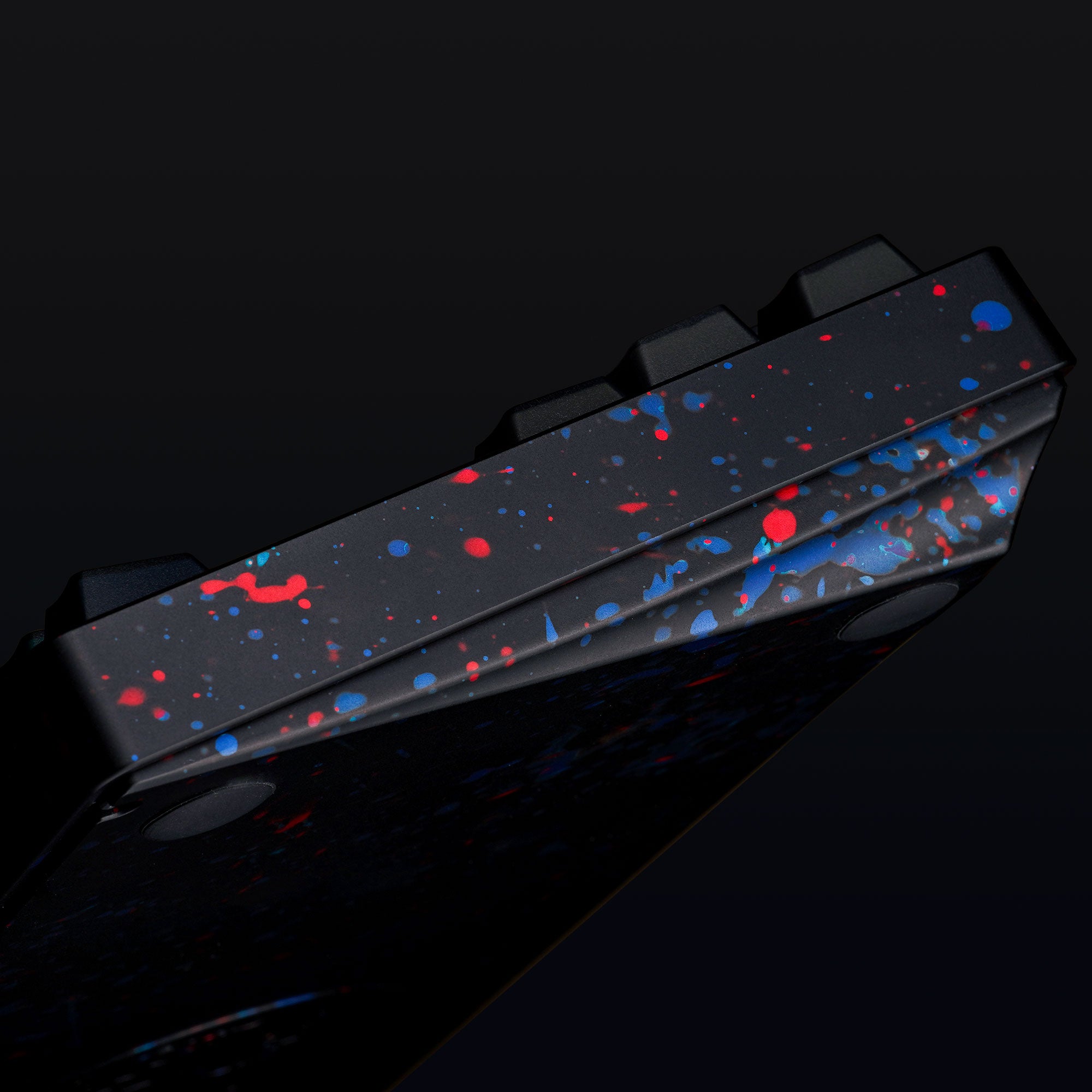

- Each unit of Deep Space and Arctic Sky has a unique pattern
Carrying case
Dimensions
Layout
