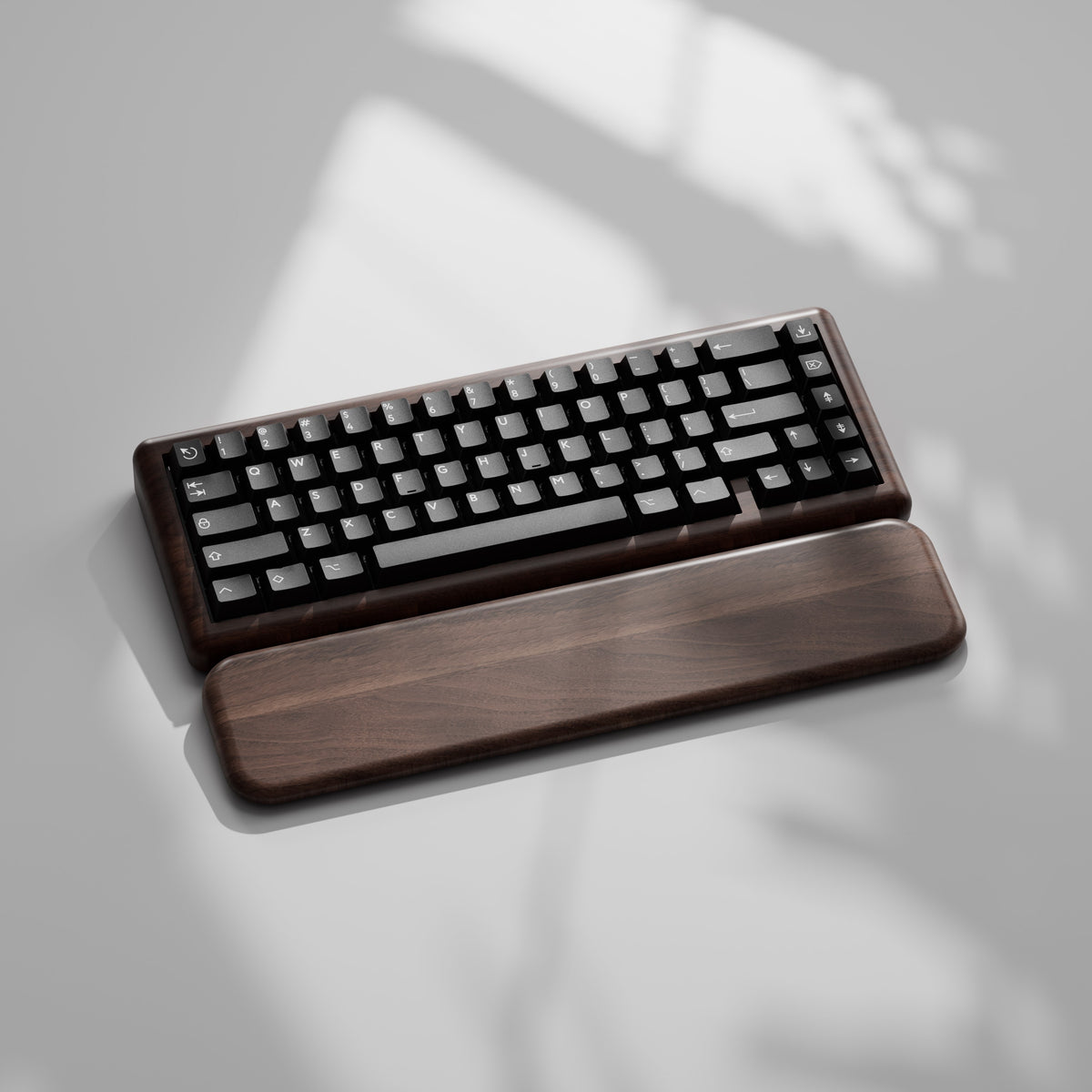

Ready to use Dusk 67 with PBTfans WOB simple base

$207.20 USD
Case
PCB
Plate
Walnut Wrist Rest
It is normal for the wood case to have color and texture differences with the wrist rest.

ANSI
This layout must be consistent with the PCB


Attention: We can not build the keyboard without the switches! If you do not choose or add the switches in the cart, we will ship the kit without assemble directly.
Gateron Smoothie Switch

We can not build the keyboard without the switches! If you do not choose or add the switches in the cart, we will ship the kit without assemble directly.

Gateron Ink v2 Black: Linear | 60 cN operating force | PCB mount 5pin

Gateron Ink v2 Silent Black: Linear | 60 cN operating force | PCB mount 5pin

Gateron Caps Milky Yellow: Linear | 50 cN Operating force | Plate mounted 3 pins

Gateron Oil King: Linear | Actuation: 55±5gf | Bottom Force: 65±5gf | PCB Mount 5-Pin | Factory Lubed

Gateron G Pro 3.0 Red: Linear | Operation Force: 45±15 gf | Bottom Touching Force: 50 gf | Pre-lubed | 3-Pin | SMD Support

Gateron G Pro 3.0 Yellow: Linear | Operation Force: 50±15 gf | Bottom Touching Force: 67 gf | Pre-lubed | 3-Pin | SMD Support

Gateron G Pro 3.0 Brown: Tactile | 3-Pin | Pre-lubed | Operation Force: 55±15 gf | Bottom Touching Force: 50 gf

Gateron G Pro 3.0 Black: Linear | Operation Force: 60±15 gf | Bottom Touching Force: 70 gf | Pre-lubed | 3-Pin | SMD Support

Gateron G Pro 3.0 Silver: Linear |Operation Force: 45±15 gf | Bottom Touching Force: 50 gf | Pre-lubed | 3-Pin | SMD Support

Gateron G Pro 3.0 White: Linear | Pins: 3-Pin | Pre-lubed: Yes | Operation Force: 38±15gf | Bottom Touching Force: 45gf

Gateron Smoothie Switch: Linear | 5-pin, PCB mount | Durability: 80 million actuations | Actuation force: 40±10gf

Cherry MX2A Speed Silver MX2A-51NN: Linear | Fast actuation | 3-pin, Plate mount | Protection class: IP40

Raptor MX Gaming Switches: Linear | Speed | Total Travel: 3.0mm | Operating Force: 42g | Bottom-out Force: 48g

Sillyworks Hyacinth V2U Switches: Linear | 5-pin | Factory Lube | Operation Force: 45g | Bottom-out Force: 52g | Total travel: 3.9mm

Sillyworks Hyacinth V2 Switches: Linear | 5-pin | Factory Lube | Operation Force: 45g | Bottom-out Force: 52g | Total travel: 3.5mm

Selections will add $33.20 USD to the price
SKU: ZH18681

Specs

  • Case: Wooden material
  • PCB: 1.6mm non-flex-cut PCB with daughter board
  • Plate: Aluminum / Carbon fiber / FR4 / Polycarbonate non-flex-cut plate.
  • Mounting style: Rubber gasket
  • Typing angel: 7°
  • Optional wrist rest
  • 65% layout
  • Keycaps: PBTfans WOB-simple base(PT04-2)

Include

Price $174 include the following items:

  • Wooden case x1
  • PCB with daughter board x1
  • Plate x1
  • Switch pad x1 set
  • Rubber feet x1 set
  • Silicone Pad x1
  • Keycaps set x1
  • Stabilizers x1

Optional accessories:

  • Walnut Wrist Rest (+$15 USD)

Disclaimer

  • The case and wrist are made of organic wood, it is a normal phenomenon if there exists a little gouge, little stripe, or slight color difference
  • Due to the potential for uncontrollable deformation of the wooden shell from local temperature and humidity changes over time, each set comes with foot pads of three different heights. If you notice a slight wobble, please feel free to replace the foot pads yourself. And this issue is except warranty. Hope for your comprehension
  • QC standard

PCB

1.6 mm Hot-swap PCB, with a Caps lock LED indicator, support VIA, USB-C interface

The PCB has been upgraded to support a daughterboard, aiming to eliminate collisions between the USB port

Plate

There are four material options available.

Bouncy typing from hard to soft:
Aluminum > Carbon fiber > FR4 > Polycarbonate



Layout

Dimension
